3U subrack: S-384185 & S-384285
|
|
|
1)3U 19" subrack (Custom width and depth are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
See detailed configuration and included parts in the PDF file.
Height
(U) |
Width
(HP) |
Depth
(mm) |
Part No. |
3 |
84
or custom width |
185 |
S-384185
/ S-3xx185 |
3 |
84
or custom width |
285 |
S-384285
/ S-3xx285 |
|
|
|
|
|
|
|
|
|
|
|
|

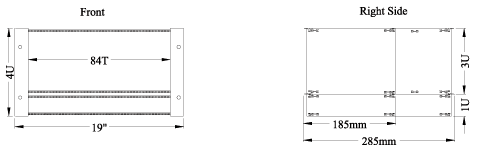

4U subrack: S-484185 & S-484285
|
|
|
1)4U 19" subrack (Custom width and depth are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
See detailed configuration and included parts in the PDF file.
Height
(U) |
Width
(HP) |
Depth
(mm) |
Part No. |
4 |
84
or custom width |
185 |
S-484185
/ S-4xx185 |
4 |
84
or custom width |
285 |
S-484285
/ S-4xx285 |
|
|
|
|
|
|
|
|
|
|
|

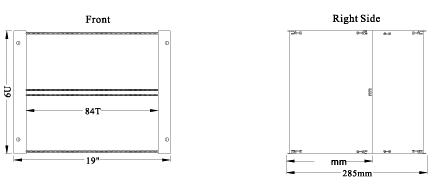

6U subrack: S-684185 & S-684285
|
|
|
1)6U 19" subrack (Custom width and depth are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
See detailed configuration and included parts in the PDF file.
Height
(U) |
Width
(HP) |
Depth
(mm) |
Part No. |
6 |
84
or custom width |
185 |
S-684185
/ S-6xx185 |
6 |
84
or custom width |
285 |
S-684285
/ S-6xx285 |
|
|
|
|
|
|
|
|
|
|
|

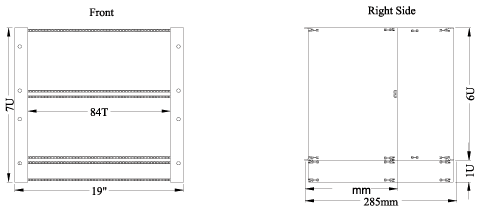

7U subrack: S-784185 & S-784285
|
|
|
1)7U 19" subrack (Custom width and depth are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
See detailed configuration and included parts in the PDF file.
Height
(U) |
Width
(HP) |
Depth
(mm) |
Part No. |
7 |
84
or custom width |
185 |
S-784185
/ S-7xx185 |
7 |
84
or custom width |
285 |
S-784285
/ S-7xx285 |
|
|
|
|
|
|
|
|
|
|
|

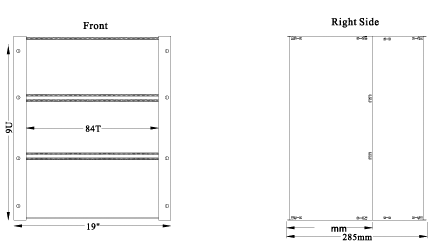

9U subrack: S-984185 & S-984285
|
|
|
1)9U 19" subrack (Custom width and depth are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
See detailed configuration and included parts in the PDF file.
Height
(U) |
Width
(HP) |
Depth
(mm) |
Part No. |
9 |
84
or custom width |
185 |
S-984185
/ S-9xx185 |
9 |
84
or custom width |
285 |
S-984285
/ S-9xx285 |
|
|
|
|
|
|
|
|
|
|
|

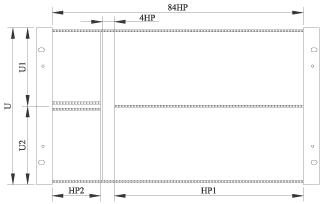

Rackmounting Kits Type 1
|
|
|
1)Custom dimensions are available.)
2)Subrack parts include:aluminum extrusions (cross rails), tapped strips, insulating strips,
EMC spring, rear/front flanges, side plates, top/ bottom covers, fixing screws
3)Options: Chassis handles, M2.5*15 captive screws to fix backplanes.
4)Finish: Alochrom or painted
5)Package: Full assembly or Kits
For card and double card in 6U/9U subrack
| Height
(U) |
Width
(HP) |
U1 |
U2 |
HP1 |
HP2 |
Depth (mm) |
Part
No. |
|
6 |
84 |
(3) |
(3) |
(60) |
(20) |
285 |
MK-684185A |
|
6 |
84 |
(3) |
(3) |
(40) |
(40) |
285 |
MK-684285B |
|
9 |
84 |
(6) |
(3) |
(60) |
(20) |
285 |
MK-984285A |
|
9 |
84 |
(6) |
(3) |
(64) |
(16) |
285 |
MK-984285B |
|
|
|
|
|
|
|
|
|
|
